Product Series
VR

 Product Description

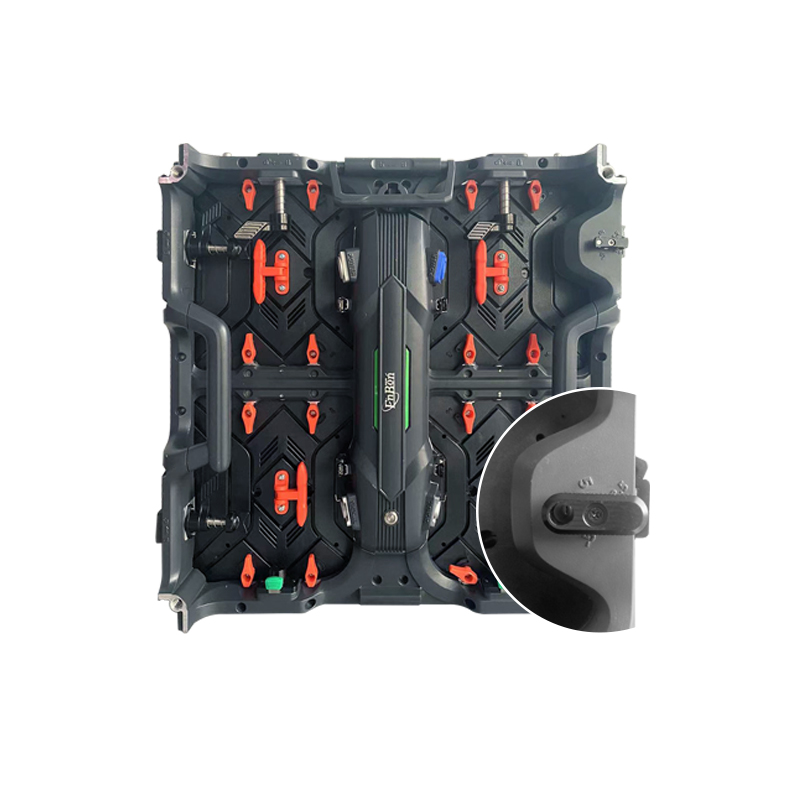

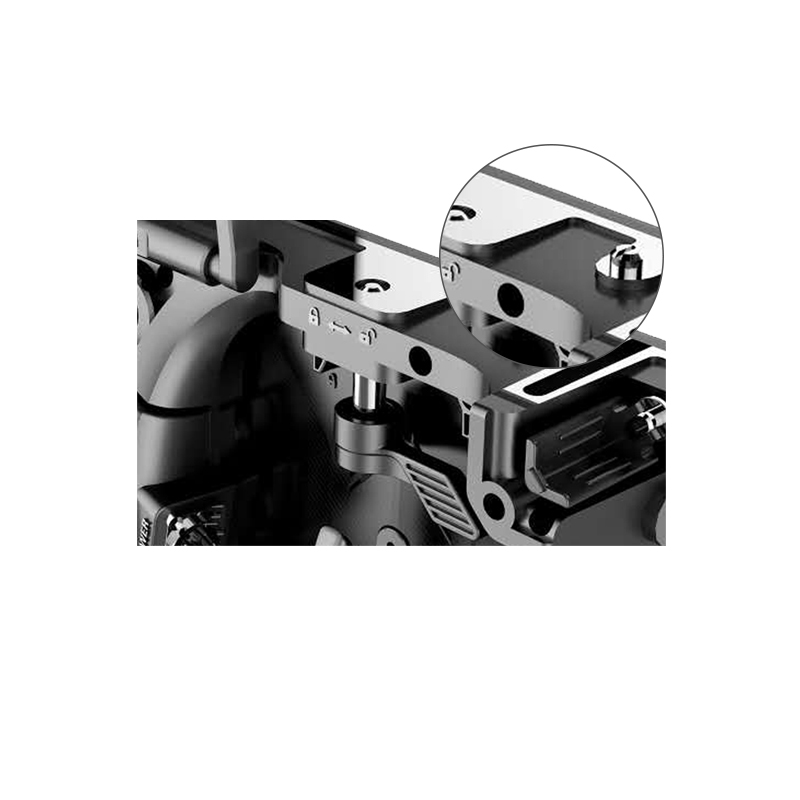

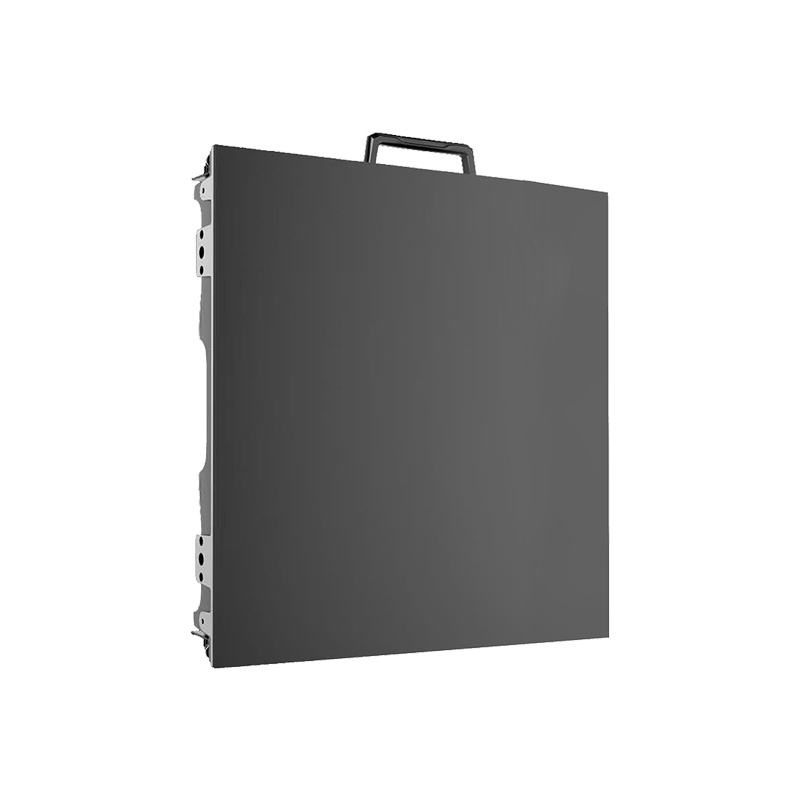

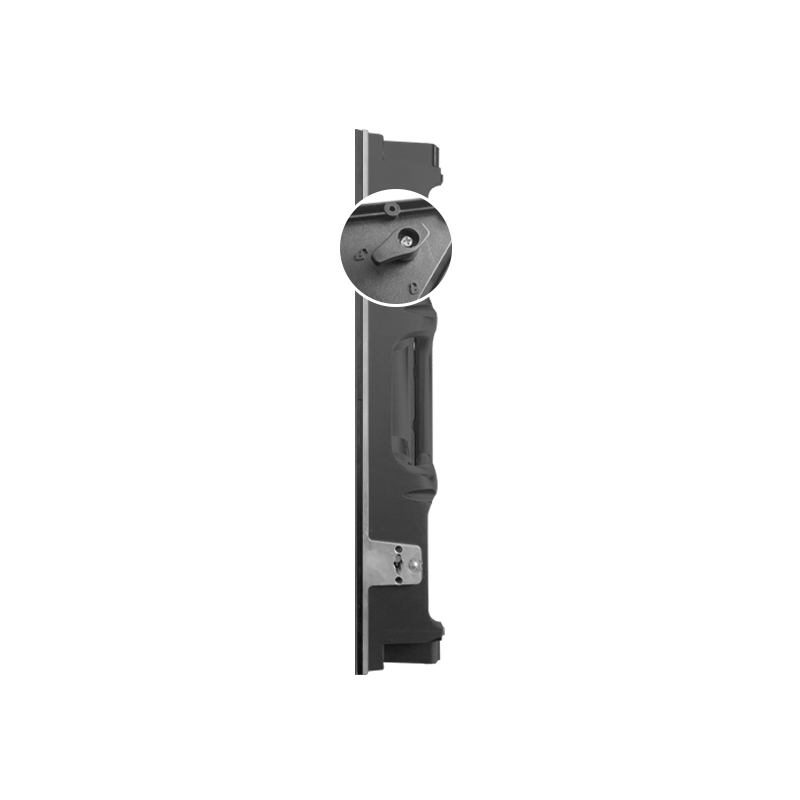

Enbon R3 series is the main product of enbon advanced public series,it have 500*500mm and 500*1000mm cabinet,And the two cabinets can work together.As a high-end product, its large screen has greatly broken the space limit, realized long-distance viewing, and can bring perfect audio-visual experience to users.At the same time, it also inherits other advantages of the enbon leasing series, such as double quick lock design,lightweight cabinet and private design of PCB.And perfect for indoor and outdoor use.


 Product Parameters


         Indoor


Outdoor

Pixel patch

1.953

2.604

2.976

3.9

2.604

2.976

LED lamp

SMD1515

SMD2020

SMD2020

SMD2020

SMD1415

SMD1415

Density

262144dots/m2

147456dots/m2

112896dots/m2

65536dots/m2

262144dots/m2

112896dots/m2

Brightness

800-1000nits

800-1000nits

800-1000nits

800-1000nits

≥ 3500nits

≥ 3500nits

IP rating

IP31

IP31

IP31

IP31

IP65

IP65

Cabinet Materiel


Die-casting Aluminum

Die-casting Aluminum

Scan

32scan

24scan

21scan

16scan

24scan

21scan

Module weight

0.5kg

0.5kg

0.5kg

0.5kg

0.5kg

0.5kg

Cabinet Weight

7.5kg

7.5kg

7.5kg

7.5kg

8kg

8kg

Module size

250*250mm

250*250mm

250*250mm

250*250mm

250*500mm

250*500mm

Cabinet size

500*500*85mm

500*500*85mm

500*500*85mm

500*500*85mm

500*500*85mm

500*500*85mm

Module pixel

128*128dots

96*96dots

84*84dots

64*64dots

64*128dots

52*104dots

Cabinet pixel

256*256dots

192*192dots

168*168dots

128*128dots

192*192dots

168*168dots

Max power

650w/sqm

500w/sqm

500w/sqm

500w/sqm

550w/sqm

550w/sqm

Average Power

230w/sqm

160w/sqm

160w/sqm

160w/sqm

200w/sqm

200w/sqm

Viewing Angle


Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg

Control way


Synchronous/asynchronous

Gray scale


16bit

Operating system


AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

Work humidity


10% ~ 90%

Work temperature


﹣20 ~﹢65℃
