┃ Product Description

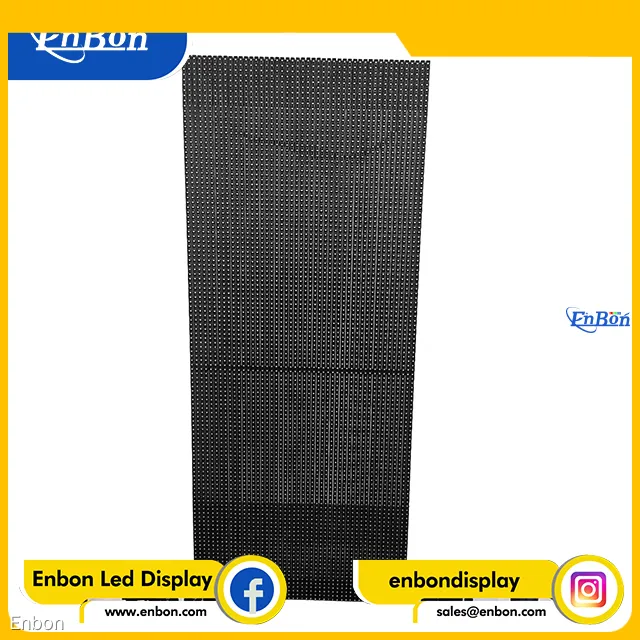

Enbon Grille series is kind of Led screen display use for outfoor rental and commercial events. Dual power supply means one cabinet has two power supplies, if one power was broken, another power can still run. The pixel pitch is Horizontal 15.625 Vertical 15.625, which shows a wide watching screen for audiences. With a high resolution but less energy consumption. There are several installation methods, like normal outdoor screen display, pillar installation, glass wall surface installation, installation inside of glass wall, rooftop installation, ceiling installation, by these different installation methods, our product could meet different needs of events.
┃ Product Parameters
Type of product | CP15-15D |
Pixel Pitch | Horizontal 15.625 Vertical 15.625 |
Pixel composition | 346DIP(1R1G1B) |
Unit Cabinet size | 500(W)*1000(H) |
Unit Cabinet pixels | 2048dots |
Unit Cabinet weight | 10kg |
Unit Cabinet Resolution | 32(W)*64(H)dot |
| Resolution | 4096dot/m2 |
| Unit Cabinet thickness | 6.7cm |
Installation thickness | 12.7cm(including frame thickness 6cm) |
| Cabinet weight | 20kg/m2 |
| Max consumption | 450w/sqm |
Average consumption | 135w/sqm |
Screen brightness | 15000≥CD/m2≥8000 |
Gray lever | 14bits |
Color temperature | 6500-9300k |
Brightness adjustment | 0-255° |
View angle | Horizontal≥110° Vertical≥70° |
| The best view distance | 15-300m |
Frame rates | 60Hz |
Control mode | Synchronous mapping/ Asynchronous control |
Cooling mode | Structure-enhanced natural convection |
Drive mode | Constant,current, static |
Power source voltage | 85-250ACV |
Life spans | 100000hours |
Strip width | 9.8mm |
Strip material | aluminum6061 |
Transparent rate | 37% |
Ip rate | Double-size IP67 |
Operating&storage temperature | -35℃~+80℃/-55℃~+120℃ |
Installation Frame material | 2.0mm cold-rolled galvanized steel sheet |
Installation type | quick installation free tool |
Fire resistance | Full V0 flame retardant |
Power | redundant power supply |
Maintain speed | 10s/unit |
| Maintain mode | Front side and back side |
