Relying on advanced technology, excellent production capabilities, and perfect service, Enbon takes the lead in the industry now and spreads our Enbon all over the world. Together with our products, our services are also supplied to be the highest-level. large led display Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product large led display or our company, feel free to contact us.This product has reliable physical characteristics. It is rust, corrosion, and deformation resistant, and all these features owe to its superior metal materials.
┃ Product Description

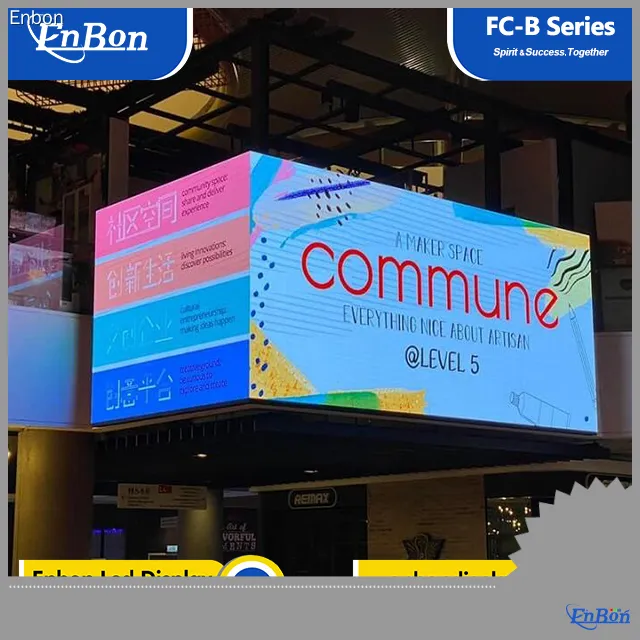

Enbon FC-B series is a kind of LED display screen for outdoor fixed front and back service. High brightness for more than 6000nits, bringing full colorful images for audiences. The feature of energy saving brings less fee cost. Installation without wires decreases additional costs. Front maintenance has SMD and DIP modules, creating more possibilities for display installation, it not only has two cabinet installation types-fixed installation and Hanging, but also its cabinet maintenance has front and rear maintenance two ways. High advanced technology makes our product with efficient heart disspation.
┃ Product Parameters
| Pixel Pitch | Outdoor: 4, 5.33, 6.67, 8, 10,16 |
| LED lamp | Outdoor: P4=SMD2727 P5.33=SMD2727 P6.67=SMD2727 P8=SMD2727 P10=SMD2727 P16=SMD2727 |
| Brightness | Outdoor:P4=6000nits P5.33=6000nits P6.67=6000nits P8=6000nits P10=6500nits P16=8500nits |
| Module pixel | Outdoor:P4=80*80dots P5.33=60*60dots P6.67=48*48dots P8=40*40dots P10=32*32dots P16=20*20dot |
| Cabinet pixel | Outdoor:P4=240*240dots P5.33=180*180dots P6.67=144*144dots P8=120*120dots P10=96*96dots P16=60*60dots |
| Module size | Outdoor:P4=320*320mm P5.33=320*320mm P6.67=320*320mm P8=320*320mm P10=320*320mm P16=320*320mm |
| Cabinet size | Outdoor:P4=960x960x120mm P5.33=960x960x120mm P6.67=960x960x120mm P8=960x960x120mm P10=960x960x120mm P16=960x960x120mm |
| Module weight | Outdoor:P4=1.6kg P5.33=1.6kg P6.67=1.6kg P8=1.6kg P10=1.5kg P16=2kg |
| Cabinet Weight | Outdoor:P4=30kg P5.33=30kg P6.67=30kg P8=30kg P10=30kg P16=32kg |
| Storage Temperature | - 40 ℃ ~60 ℃ |
| Operation Temperature | - 20 ℃ ~50℃ |
| Storage Humidity | 10％ ～ 90％ |
| Operation Humidity | 10％ ～ 90％ |
| Gray scale | 14bits |
| Gray Scale per Color | 16384level |
| Refresh Rate | ≥1920Hz |
| Max Power | Outdoor:P4=800w/sqm P5.33=850w/sqm P6.67=800w/sqm P8=850w/sqm P10=700w/sqm P16=400w/sqm |
| Average Power | Outdoor:P4=300w/sqm P5.33=380w/sqm P6.67=300w/sqm P8=380w/sqm P10=240w/sqm P16=130w/sqm |
| IP rating | Outdoor:IP54/IP65 |
| Drive Mode | Outdoor:P4=1/10 P5.33=1/8 P6.67=1/5 P8=1/4 P10=1/2 P16=Static |
| Viewing Angle | Outdoor:P4=140/140(H/V°) P5.33=140/140(H/V°) P6.67=140/140(H/V°) P8=140/140(H/V°) P10=140/140(H/V°) P16=110/60(H/V°) |
| AC input voltage | AC 110/ 220V ± 10% |
| AC input frequency | 60Hz |
| Density | Outdoor:P4=62500dots/m2 P5.33=35344dots/m2 P6.67=22500dots/m2 P8=15625dots/m2 P10=10000dots/m2 P16=3096dots/m2 |
| Cabinet Materie | Die-casting Aluminum |
┃ Product Display
┃ Shipping&Packaging
┃ Our Certification
