After years of solid and rapid development, Enbon has grown into one of the most professional and influential enterprises in China. outdoor led screen We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product outdoor led screen or our company.The product has good heat dissipation. is created to increase the contact surface area between solid and fluid, hence increasing the effectiveness of heat transfer.
┃Product Description
Multiple installation methods support embedded installation in different ways. As PWM IC driver was applied on FR Series, it enhances visual refresh rate by reinforcing pulse wave width and dividing conducting time to numbers of shorter conducting time. Besides, GCLK frequency multiplier increases GCLK frequency to realize doubling refresh rate, not only refresh rate, FR series grayscale also benefits from PWM IC driver, cause it at low grayscale, grayscale is smoother compared with common IC driver, bring pleasure feeling for watching.
┃ Product Parameters
| Pixel Pitch | Outdoor: 2.5, 3, 3.33, 4, 5, 6 |
| LED lamp | Outdoor: SMD1415(P2.5, P3) SMD1921(P3.33, P4,P5) SMD2727(P6) |
| Brightness | Outdoor:6800nits(P2.5) 6500nits(P3) 6000nits(P3.33, P6) 5500nits(P4) 5200nits(P5) |
| Module pixel | Outdoor:P2.5=128*64dots P3=104*52dots P3.33=96*48dots P4=80*40dots P5=64*32dots P6=48*24dots |
| Cabinet pixel | Outdoor:P2.5=384*384dots P3=312*312dots P3.33=288*288dots P4=240*240dots P5=192*192dots P6=160*160dots |
| Module size | Outdoor:320*160mm(P2.5, P3, P3.33, P4, P5, P6) |
| Cabinet size | Outdoor:960x960x120mm(P2.5, P3, P3.33, P4, P5, P6) |
| Module weight | Outdoor:0.5kg(P2.5, P3, P3.33, P4, P5, P6) |
| Cabinet Weight | Outdoor: 28kg(P2.5, P3, P3.33, P4, P5, P6) |
| Storage Humidity | 10％ ～ 90％ |
| Operation Humidity | 10％ ～ 90％ |
| Storage Temperature | - 40 ℃ ~60 ℃ |
| Operation Temperature | ﹣20 ～﹢50℃ |
| Gray Scale per Color | 16384level |
| Gray scale | 14bits |
| Refresh Rate | ≥3840Hz |
| Max Power | Outdoor:1000w/sqm(P2.5) 950w/sqm(P3) 980w/sqm(P3.33, P4) 780w/sqm(P5) 580w/sqm(P6) |
| Average Power | Outdoor:350w/sqm(P2.5) 320w/sqm(P3, P3.33, P4) 260w/sqm(P5) 200w/sqm(P6) |
| IP rating | Outdoor:IP54/IP65 |
| Drive Mode | Outdoor:1/16(P2.5) 1/13(P3) 1/12(P3.33) 1/10(P4) 1/8(P5) 1/6(P6) |
| Viewing Angle | 140/140(H/V°) |
| AC input voltag | AC 110/ 220V ± 10% |
| AC input frequency | 60Hz |
| Density | Outdoor:P2.5=160000dots/m2 P3=105625dots/m2 P3.33=90000dots/m2 P4=62500dots/m2 P5=40000dots/m2 P6=27889dots/m2 |
| Cabinet Materiel | Die-casting Aluminum |
| Pixel Pitch | Outdoor: 8, 10, 10 |
| LED lamp | SMD3535 |
| Brightness | Outdoor: 6000nits(P8) 7000-7500nits(P10) 5500nits(P10) |
| Module pixel | Outdoor:40x20dots(P8) 32x16dots(P10, P10) |
| Cabinet pixel | Outdoor:120*120dots(P8) 96*96dots(P10, P10) |
| Module size | Outdoor:320*160mm(P8, P10,P10) |
| Cabinet size | Outdoor:960x960x120mm(P8, P10,P10) |
| Module weight | Outdoor:0.5kg(P8, P10,P10) |
| Cabinet Weight | Outdoor:28kg(P8, P10,P10) |
| Storage Humidity | - 40 ℃ ~60 ℃ |
| Operation Humidity | - 20 ℃ ~50 ℃ |
| Storage Temperature | 10％ ～ 90％ |
| Operation Temperature | 10％ ～ 90％ |
| Gray Scale per Color | 16,384level |
| Gray scale | 14bit |
| Refresh Rate | ≥3840Hz |
| Max Power | Outdoor: 800w/sqm(P8) 750w/sqm(P10, P10) |
| Average Power | Outdoor:230w/sqm(P8) 150w/sqm(P10) |
| IP rating | Outdoor: IP54/IP65 |
| Drive Mode | Outdoor:1/5(P8) 1/2(P10) 1/4(P10) |
| Viewing Angle | 140/140 |
| AC input voltag | AC 110/ 220V ± 10% |
| AC input frequency | 60Hz |
| Density | Outdoor:15625dots/m2(P8) 10000dots/m2(P10, P10) |
| Cabinet Materiel | Die-casting Aluminum |

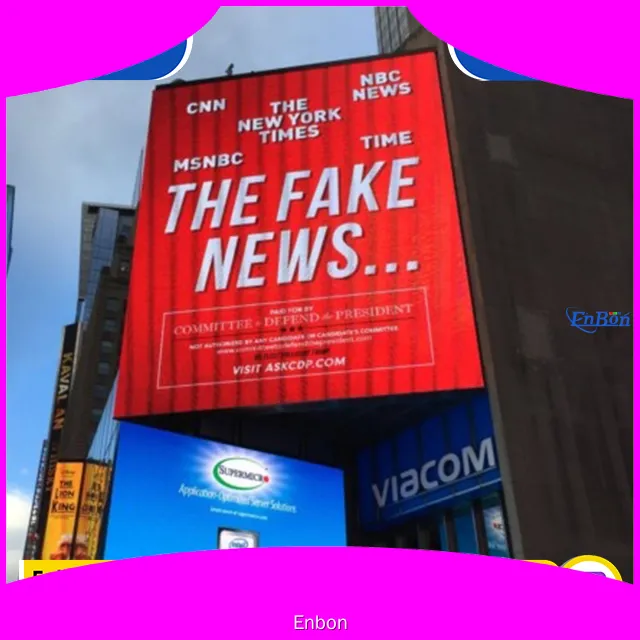

┃ Product Display
