superior quality led display R5 Series.There are straight and curves available. The curve angle is±6° or ±3°.It can be installed.quickl by one-hand operation.Perfect shape design allows you to easily grab the cabinet.It has250*250mm module with 500*500mm diecasting cabinets.We recommend you to choose the curve option.
┃ Product Description
Enbon R5 series rental screens. Lightweight design allows you to move easily, Ergonomic design allows you to quickly install and maintain. Double quick lock and integrated power supply design make daily use more convenient and safe. Compared with the same type of screen, the R5 series is lighter and thinner, Its unique modular design makes it unnecessary to move left and right in use. Same HUB could useing all kinds of pixel, It can create a better display effect. Wide viewing angle and no reflection make its stage effect better. Durability is also one of the advantages of R5 series, For long-term customers, R5 series is absolutely the best choice.
┃ Product Parameters
Indoor | Outdoor | ||||
Pixel patch | 2.604 | 2.976 | 3.91 | 3.91 | 4.81 |
LED lamp | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
Density | 147456dots/m2 | 112896dots/m2 | 65536dots/m2 | 65536dots/m2 | 43264dots/m2 |
Brightness | 800-1000nits | 800-1000nits | 800-1000nits | ≥ 3500nits | ≥ 3500nits |
IP rating | IP31 | IP31 | IP31 | IP65 | IP65 |
Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | |||
Scan | 24scan | 21scan | 16scan | 16scan | 13scan |
Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 8kg | 8kg |
Module size | 250*250mm | 250*250mm | 250*250mm | 250*500mm | 250*500mm |
Cabinet size | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm |
Module pixel | 96*96dots | 84*84dots | 64*64dots | 64*128dots | 52*104dots |
Cabinet pixel | 192*192dots | 168*168dots | 128*128dots | 128*128dots | 104*104dots |
Max power | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||
Control way | Synchronous/asynchronous | ||||
Gray scale | 16bit | ||||
Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
Work humidity | 10% ~ 90% | ||||
Work temperature | ﹣20 ~﹢65℃ |

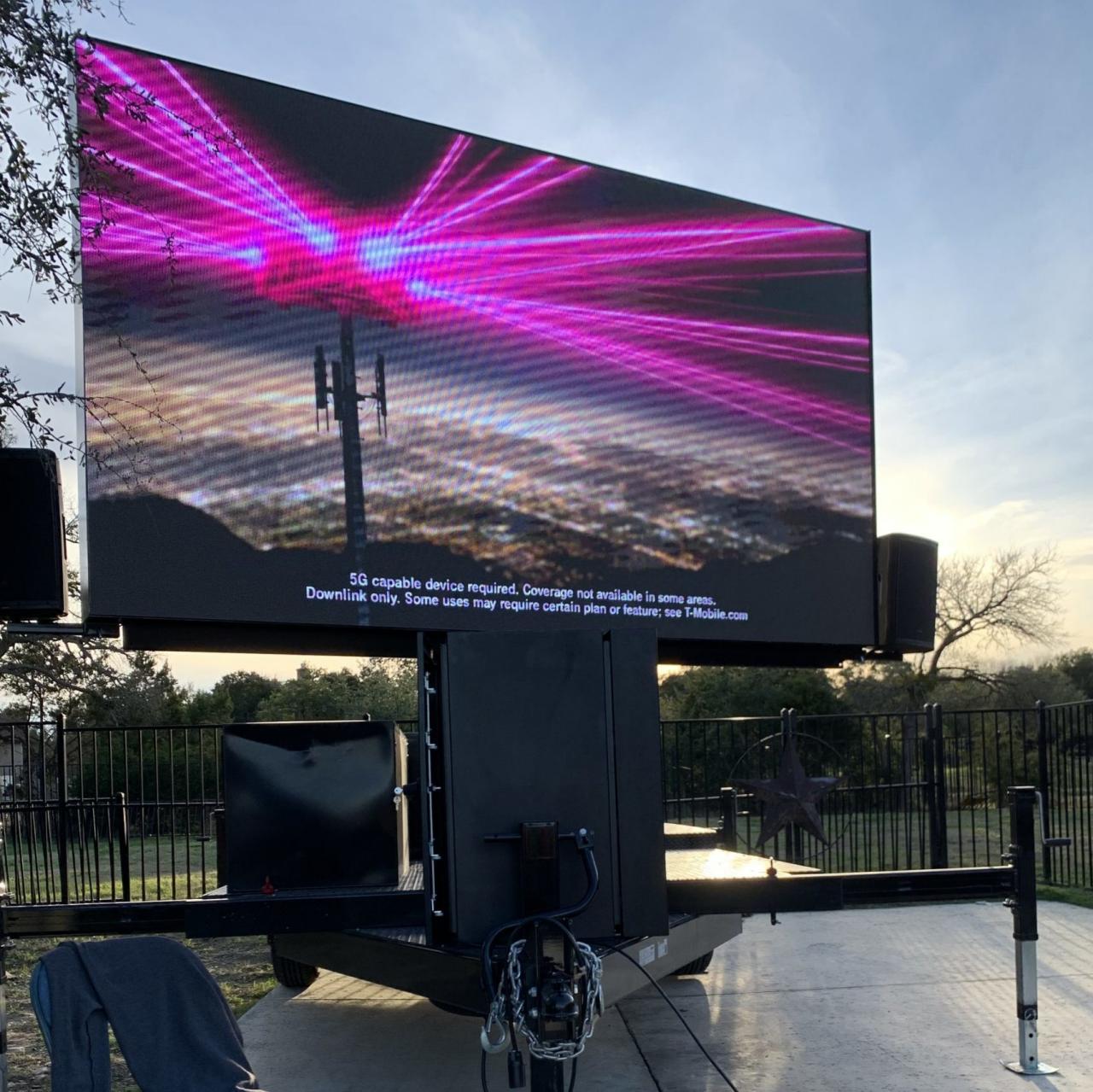

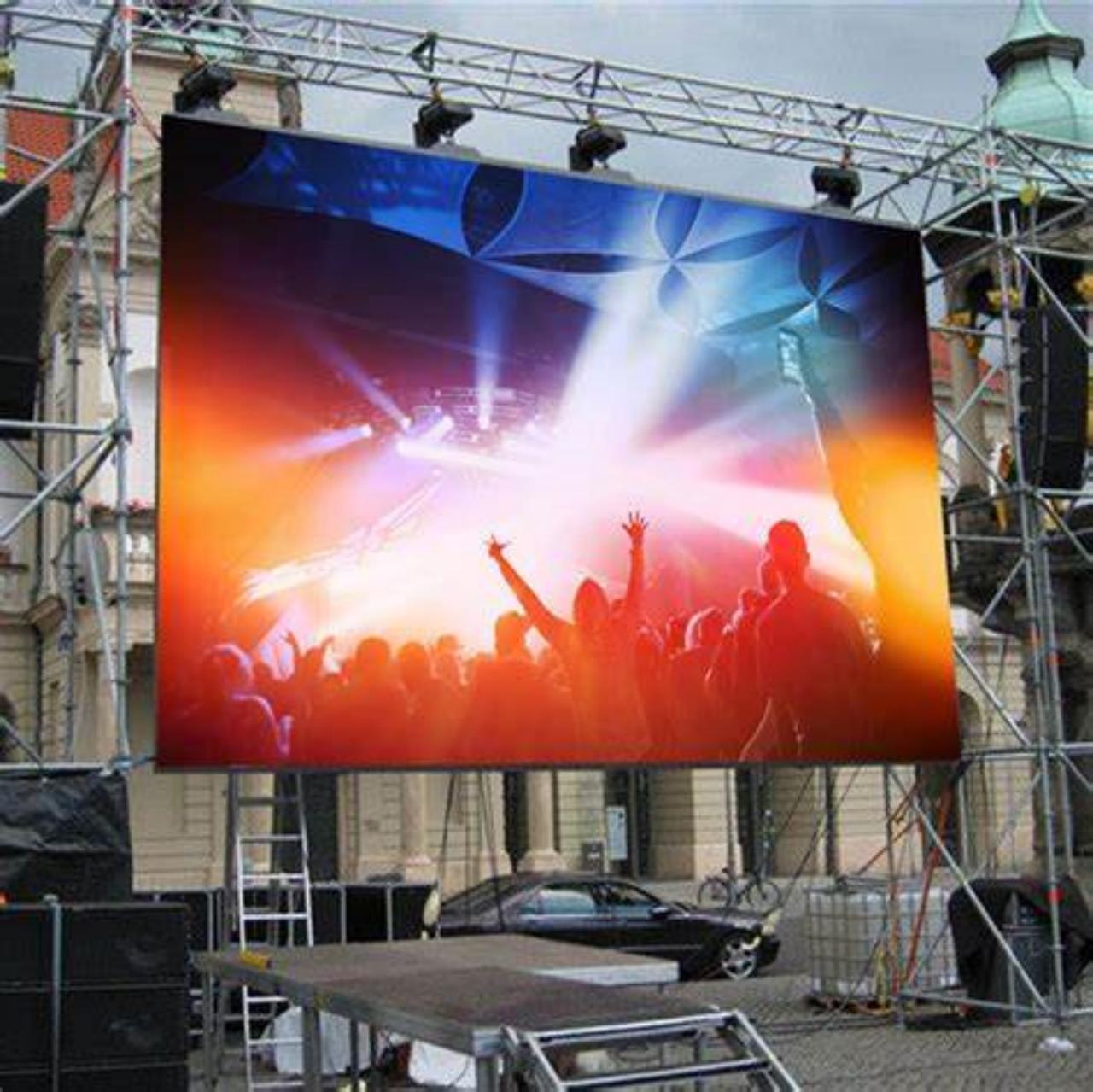

┃ Product Display
┃ FAQ
Q:How to inquire for quotation?
A:You can visit the official website of enbon, or send private letters to our sales through INS, Facebook, youtube, Alibaba and other websites to inquire about the quotation
Q:How about the after-sales service of your products?
A: All our products are provided with a one-year warranty, and some parts can be repaired and replaced free of charge.
Q: Can your products be customized?
┃ Delievery time
