Over the years, Enbon has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. led screen panels for church We have been investing a lot in the product R&D, which turns out to be effective that we have developed led screen panels for church. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The product is good in heat transfer. The thermal interface materials fill the air gaps which have low heat conductivity, therefore improving the heat conduction path.
┃ Product Description
Enbon FS series is a kind of led screen display of indoor events. Signal backup is stable and reliable, data redundancy guarantees no signal failure and current sharing gives consistent power to panel, in case of any panel power supply failure. Hard connection makes it splice without cables,its higher stability and better heat dissipation also ensure its high quality. High brightness of the display, but low energy consumption. Front and rear installation and maintenance bring flexible installation and convenient maintenance. The contents of FS series are colorful and bright when it's played, which will leave a deep impression to spectators. Wide angles also bring pleasure experience and feelings . It's a hot product at markets home and abroad.
┃ Product Parameters
Pixel patch | 1.579 | 1.67 | 1.875 | 2 | 2.5 | 3 |
Cabinet Resolution | 304*304 dots | 288*288 dots | 256*256 dots | 240*240 dots | 192*192 dots | 160*160 dots |
Pixel Density (dots/m²) | 401111dots/m2 | 360000dots/m2 | 284444dots/m2 | 250000dots/m2 | 160000dots/m2 | 111111dots/m2 |
Cabinet Dimension (W×H×D) | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm |
Cabinet Material | Die-casting Aluminum | |||||
Cabinet Weight (kg) | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg |
Color Depth (Bit) | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit |
Refresh Rate (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
Driver Mode | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver |
Brightness (nits) | ≥600nits | ≥600nits | ≥600nits | ≥800nits | ≥900nits | ≥900nits |
Viewing Angle (H°) | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° |
Viewing Angle (V°) | 140 ° | 140 ° | 140 ° | 140 ° | 140 ° | 140 ° |
AC Power Input (V) | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V |
AC Power Frequency (Hz) | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz |
Max. Power (W/m²) | 680w/m² | 680w/m² | 570w/m² | 520w/m² | 520w/m² | 550w/m² |
Avg. Power (W/m²) | 230w/m² | 230w/m² | 200w/m² | 170w/m² | 170w/m² | 190w/m² |
Operating Temperature (℃ ) | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ |
IP Rating (IP) | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 |
Installation Type | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation |
Cabinet Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance |

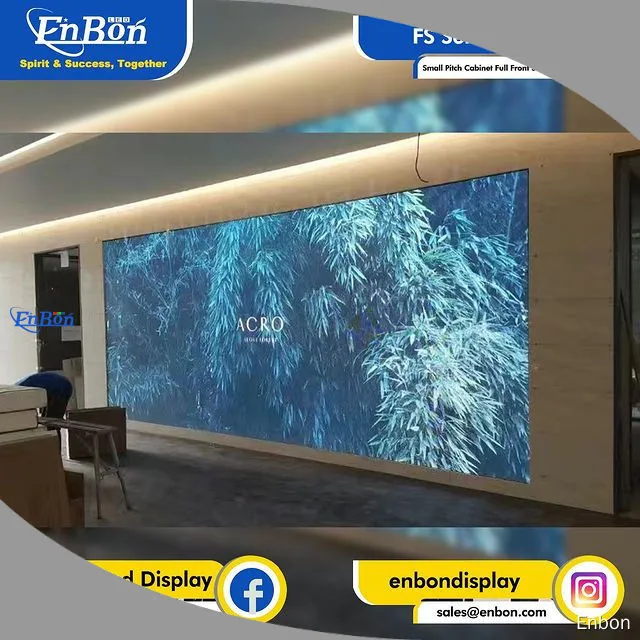

┃ Product Display
┃ Our Service
Customer Service
1. We can provide customers with professional product advice and purchase options.
2. All emails will be responded within 24 hours during working days.
3. We have online customer service in English, French, Korean and Japanese. You can communicate with ease, or contact us through email anytime.
4. All customers will get one-on-one service.
Customized Service
1. We provide flexible customized services with our abundant experiences in Led screen display D&R.
2. Includes product appearance design, product size, new product development, etc.
3. MOQ is depend on different customized requests.
The Agency Policy
Please contact our sales department for more details.
After Sale Service
1. The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
2. According to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory. And all of our products are certificated by top testing institutions such as TST certification and ATC certification Providing safe and guaranteed products is always one of our greatest strengths.
┃ Delievery time
