At Enbon, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. led moving display board Enbon is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our led moving display board and other products, just let us know.Most of our customers agreed that the product is important in electronic products. It helps prevent the premature failure of the electronic components.
┃ Product Description

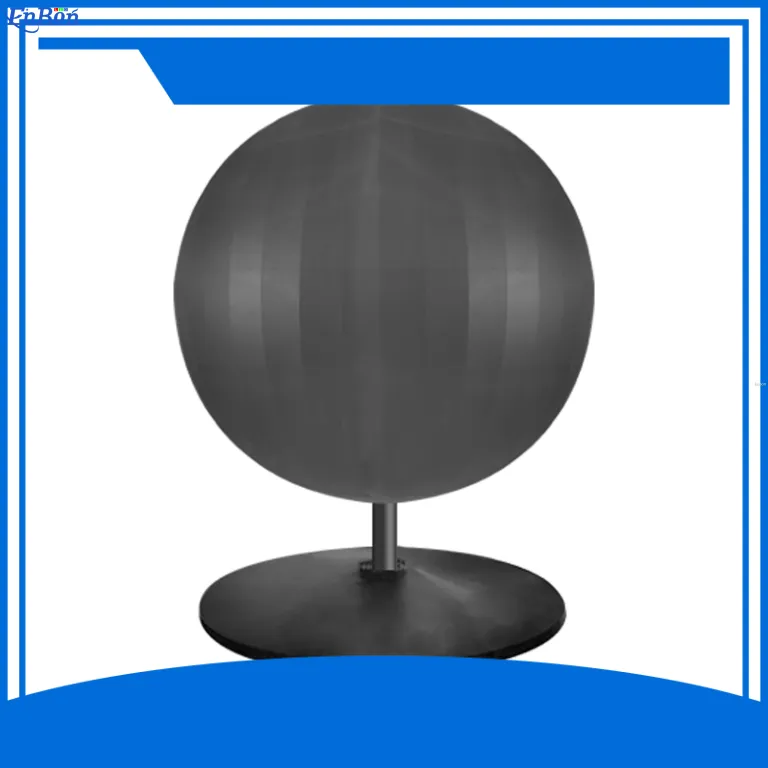

Enbon Ball series can be used for demonstrations and various indoor conference room display areas or outdoor staging events and exhibitions. Its 360 degrees shows the whole content in a colorful way. LED spherical screen has the advantages of light weight, good wind resistance, easy installation, good heat dissipation performance, convenient front and rear maintenance,good waterproof performance, good seismic performance, low cost auxiliary installation frame and fanless silence. Security monitoring also makes sure the process of installation is safe enough. The precise module size ensures the consistency of the overall circular curvature of the LED ball.
┃ Product Parameters
Pixel Pitch | Indoor: 2, 2.5, 3, 3, 2.5 Outdoor: 6, 8, 10, 16, 16 |
LED lamp | Indoor: SMD1515(P2) SMD2121(P2.5, P3, P3, P2.5) Outdoor: SMD2727(P6, P8) SMD3535(P10) SMD346(P16, P16) |
Brightness | Indoor:850cd (P2, P2.5, P3, P3, P2.5) Outdoor: 5500cd(P6, P8, P10) 6800cd(P16, P16) |
Pixel composition | Indoor: 1R1G1B Outdoor: 1R1G1B |
IC chip | Indoor: 5124IC (P2, P2.5, P3, P3, P2.5) Outdoor: 5124IC(P6, P8, P10, P16, P16) |
Resolution | Indoor: 1002314dot/m2(P2) 638700dots/m2(P2.5) 202000dots/m2(P3) 1637850dots/m2(P3) 1968348dots/m2(P2.5) Outdoor: 785000dot/m2(P6) 1226000dots/m2(P8) 1130000dots/m2(P10) 1226000dots/m2(P16) 3125000dots/m2(P16) |
Whole ball size
| Indoor: Diameter1.2m (P2) Diameter1.2m(P2.5) Diameter0.76m(P3) Diameter2.5m(P3) Diameter2m(P2.5) Outdoor: Diameter 3m(P6) Diameter 5m(P8) Diameter 6m(P10) Diameter 10m(P16) Diameter16m(P16) |
Area
| Indoor: 4.5216m²(P2) 4.5216m²(P2.5) 1.82m²(P3) 19.625/m² (P3) 12.56m²(P2.5) Outdoor: 28.3m²(P6) 78.5m² (P8) 113m²(P10) 315/m²(P16) 800m²(P16) |
Weight | Indoor:100kg(P2) 100kg(P2.5) 80kg(P3) 400kg(P3) 400kg(P2.5) Outdoor: 1400kg(P6) 4000kg (P8) 12000kg(P10) 35000kg(P16) 42000kg(P16) |
Work humidity | 10％ ～ 90％ |
Work temperature | ﹣20 ～﹢60℃ |
Color temperature | 3200K--9500K |
Scan | Indoor: 27s (P2, P2.5, P3, P3, P2.5) Outdoor: 8s(P6) 4s(P8 P10) static(P16, P16) |
Refresh rate | 1920Hz |
Gray scale | 14bit |
Lifetime | ≥100000 hours |
Input voltage (V) | AC110/220V |
Input frequency | 50/60HZ |
IP rating | Indoor: IP33 Outdoor: IP65 |
Control way | Synchronous/Asynchronous |
Viewing Angle | 360° full viewing angle |
Brightness adjustment level | Automatic or manual level |
┃ Product Display
┃ Our Service
Customer Service
1. We can provide customers with professional product advice and purchase options.
2. All emails will be responded within 24 hours during working days.
3. We have online customer service in English, French, Korean and Japanese. You can communicate with ease, or contact us through email anytime.
4. All customers will get one-on-one service.
5. We have ten years experiences on researching and developing LED Screen Display, thus, we,re sure that we will give our clients our best services.
Customized Service
1. We provide different customized services with our abundant experiences in Led screen display D&R.
2. Including product appearance design, product size, new product development, etc.
3. MOQ is depending on different customized requests.
The Agency Policy
Please contact our sales department for more details.
After Sale Service
1. The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
2. According to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory. And all of our products are certificated by top testing institutions such as TST certification and ATC certification Providing safe and guaranteed products is always one of our greatest strengths.
