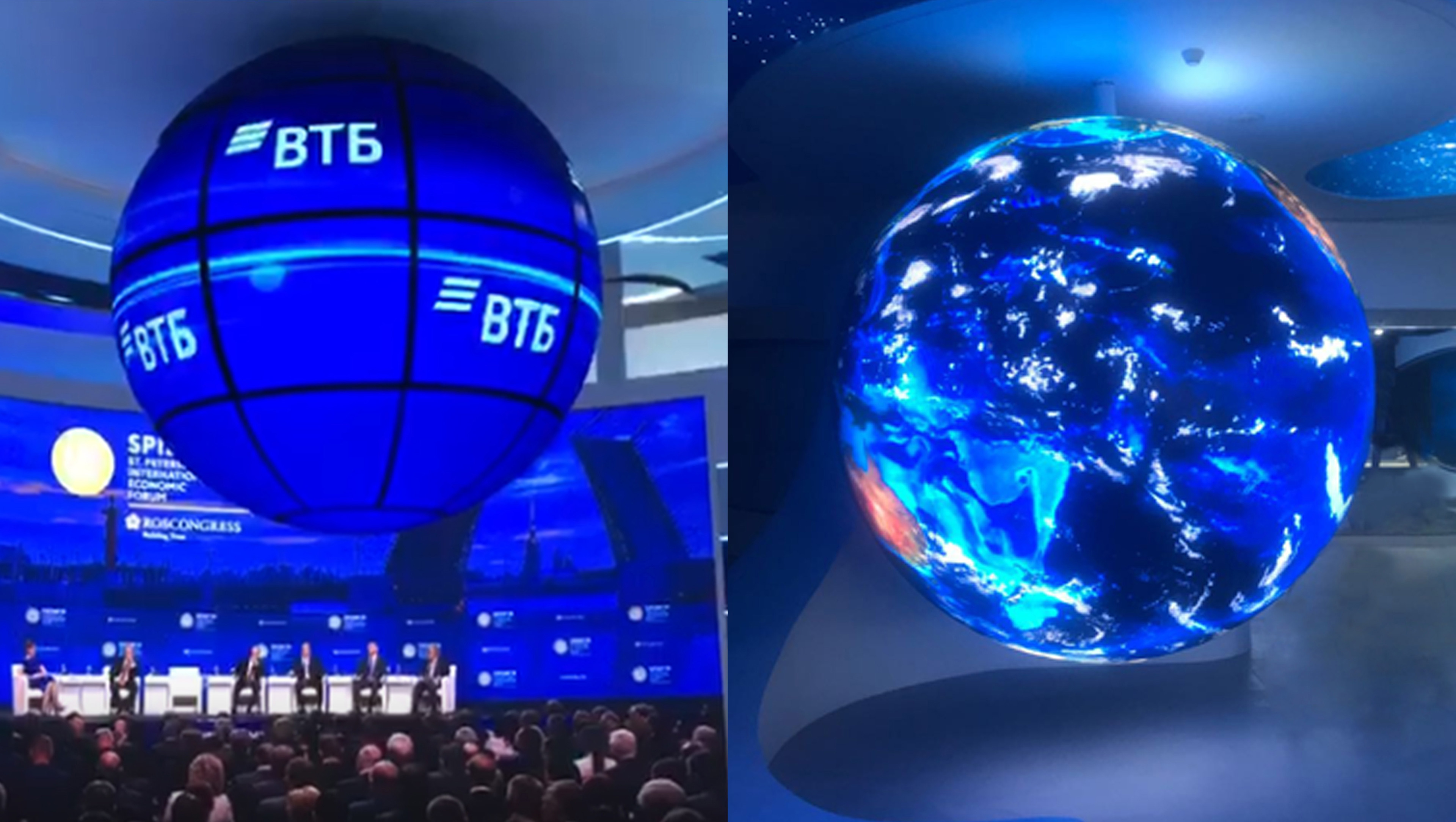

Enbon LED spherical screen has a 360° full viewing angle and can play videos in all directions. When using sphere led display, you can feel good visual effects at any angle without the problem of flat viewing angle. At the same time, it can also directly map spherical,The Enbon design team can design spherical screens for different indoor and outdoor use environments to perfectly meet market demands, Need Led Display Ball Screen choose us. china enbon.
● Uniform tapping: Pixel to pixel image
● Seamless splicing between cabinets and modules
● Synchronous and asynchronous compatible
● Supporting offline and online model
● Maintenance : support rear and front service

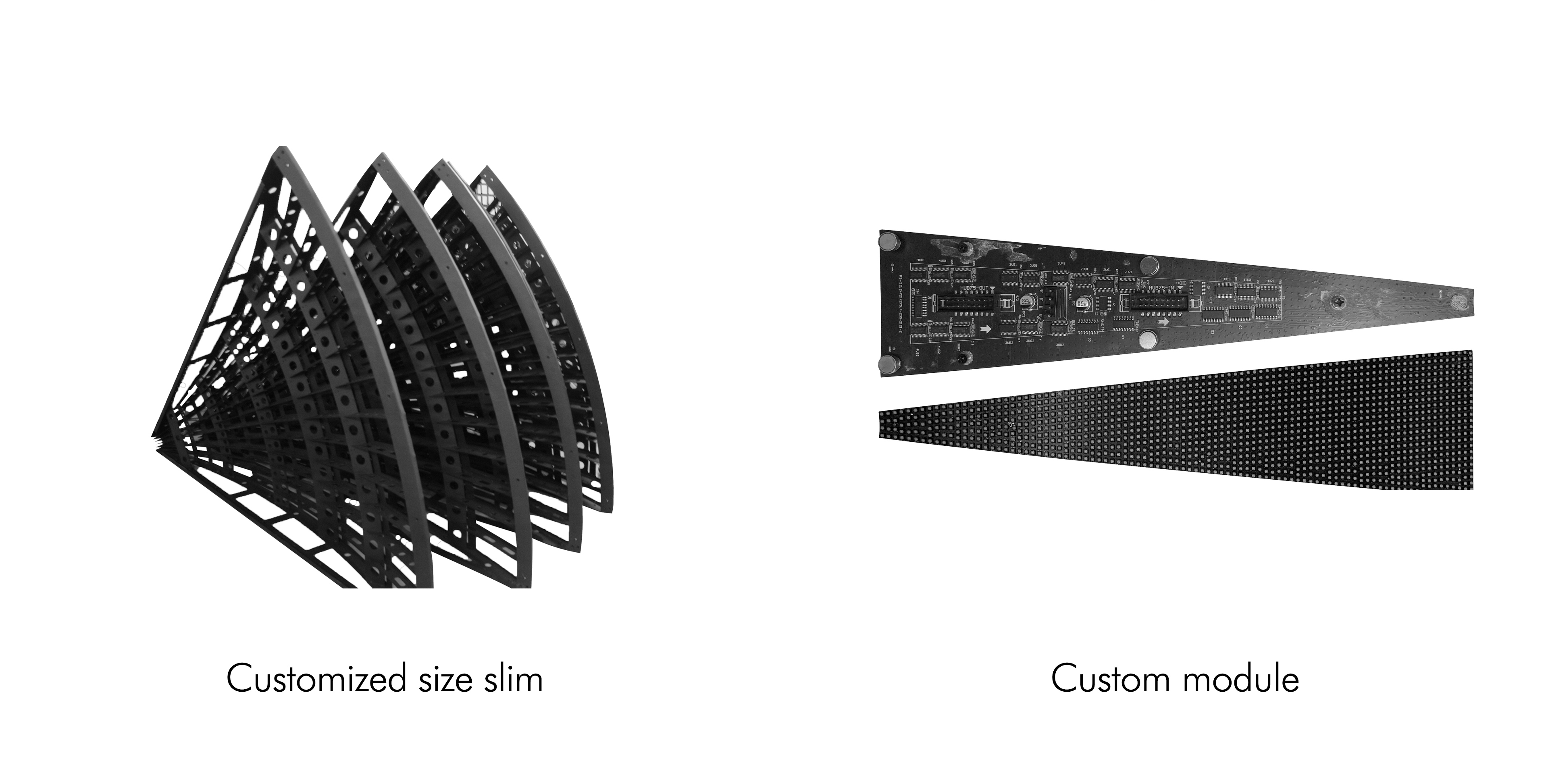

● Could make with different diameter design
● Enbon team will support design，proudction，installation
1
| Item | Diameter 1.2m | Diameter 1.2m | Diameter 0.76m | Diameter 2.5m | Diameter 2m |
| Pixel pitch | 2mm | 2.5mm | 3mm | 3mm | 2.5mm |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED package | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| IC chip | 5124IC | 5124IC | 5124IC | 5124IC | 5124IC |
| Scan | 27s | 27s | 27s | 27s | 27s |
| Application | Indoor | Indoor | Indoor | Indoor | Indoor |
| Whole ball size | Diameter1.2m | Diameter1.2m | Diameter0.76m | Diameter2.5m | Diameter2m |
| Brightness | 850cd | 850cd | 850cd | 850cd | 850cd |
| Resolution | 1002314 | 638700 | 202000 | 1637850 | 1968348 |
| Area | 4.5216m² | 4.5216m² | 1.82m² | 19.625/m² | 12.56m² |
| Weight | 100kg | 100kg | 80kg | 400kg | 400kg |
| Gray scale | 14bit | 14bit | 14bit | 14bit | 14bit |
| Input voltage (V) | AC110/220V | AC110/220V | AC110/220V | AC110/220V | AC110/220V |
| Input frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Brightness adjustment level | Automatic or manual level | ||||
| Refresh rate | 1920 | ||||
| Color temperature | 3200K--9500K | ||||
| Working temp | ﹣20 ~﹢60℃ | ||||
| Working humidity | 10 ~﹢90℃ | ||||
| Lifetime | ≥100000 hours | ||||
